Configure Data Audit in the Back-Office

Data Audit shows the full history of changes made to an entity and its fields, provided the entity and the fields are marked as auditable. Data Audit also enables you to see the changes made to any configuration setting at any of the six levels: system (global), organization, website, customer group, customer, and user (My Configuration). You can also build reports based on these changes.

Data audit grid under System > Data Audit

All changes made to auditable entities, their fields, and configuration settings appear under System > Data Audit in the back-office main menu. You can filter this table by the criteria you need. You can also save the filtered view for future reference.

The report grid contains the following columns:

Name

Description

ACTION

The kind of change made to the record: created, updated, or removed.

  • Create — The record received a value for the first time. Before this change, the record used its default value.

  • Update — An existing custom value was replaced with another custom value.

  • Remove — The record was reset to its default or parent value.

VERSION

The sequential number of the change made to the specific record.

ENTITY TYPE

The type of the entity to which the entity record belongs. For configuration settings, the type shows the configuration level at which the change occurred, for example Configuration: System, Configuration: Website, or Configuration: User, etc.

ENTITY NAME

The name of the specific record that changed.

ENTITY ID

The ID of the entity to which the record belongs.

DATA

For entities and entity fields, DATA displays the details of the change made to the entity. For configuration settings, DATA displays the location of the changed setting, followed by its old and new values. The location is shown as a path, for example Commerce › Product › Promotions › New Arrivals › Maximum Items.

AUTHOR

The name and email address of the user who made the change.

ORGANIZATION

Organization in which the change was made.

LOGGED AT

The date and time when the event was logged.

Use filters to find the required audit record. Use the Data filter to search a match in the name of the changed entity or setting (within old and new values) or its location.

Mark an Entity as Auditable

Marking an entity as auditable tells the system to log every change made to the entity, together with the name of the user who made the change.

To mark an entity as auditable:

  1. Navigate to System Configuration > Entities > Entity Management in the main menu.

  2. Locate the required entity and open its edit page.

    Hint

    To save time looking for the entity, use filters at the top of the record table.

    Select an entity to edit

  3. In the Other section, set the Auditable field to Yes.

    Setting the Auditable field of the entity to Yes

    Hint

    For more information on entities, see the Create an Entity topic.

  4. Click Save and Close.

Mark an Entity Field as Auditable

Marking an entity as auditable does not automatically track its fields. For instance, if the newArrival entity field of the Product entity has the Auditable field set to No, then no changes made to this field are going to be tracked.

Auditable column for entity fields

To set an entity field as Auditable:

  1. Open its edit page.

  2. In the Back-Office options section, select Yes from the drop-down list for the Auditable field.

    Set an entity field as auditable

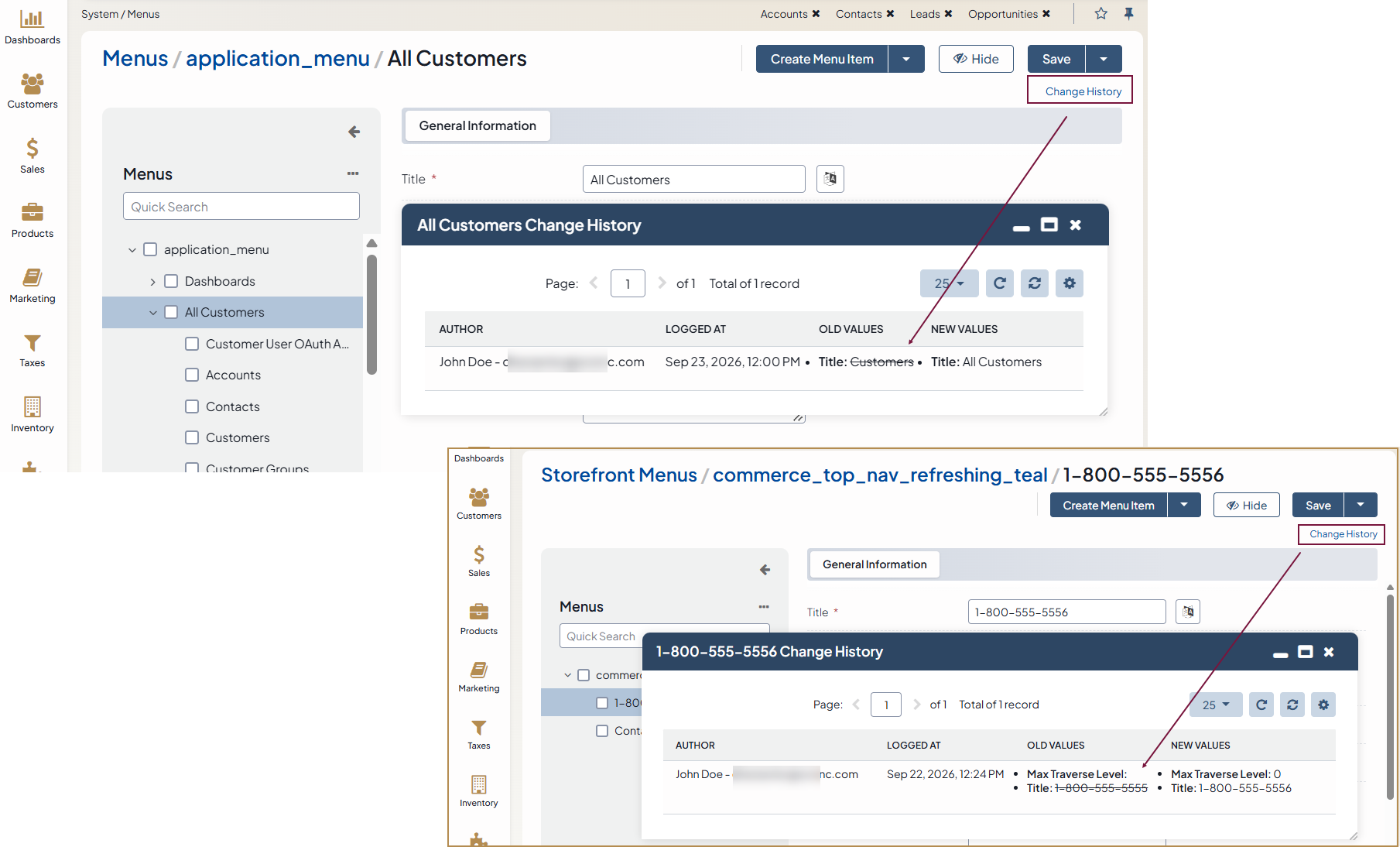

For instance, once you made the newArrival field as auditable, any changes to this field have become traceable, as illustrated in the screenshot below:

View Entity Change History

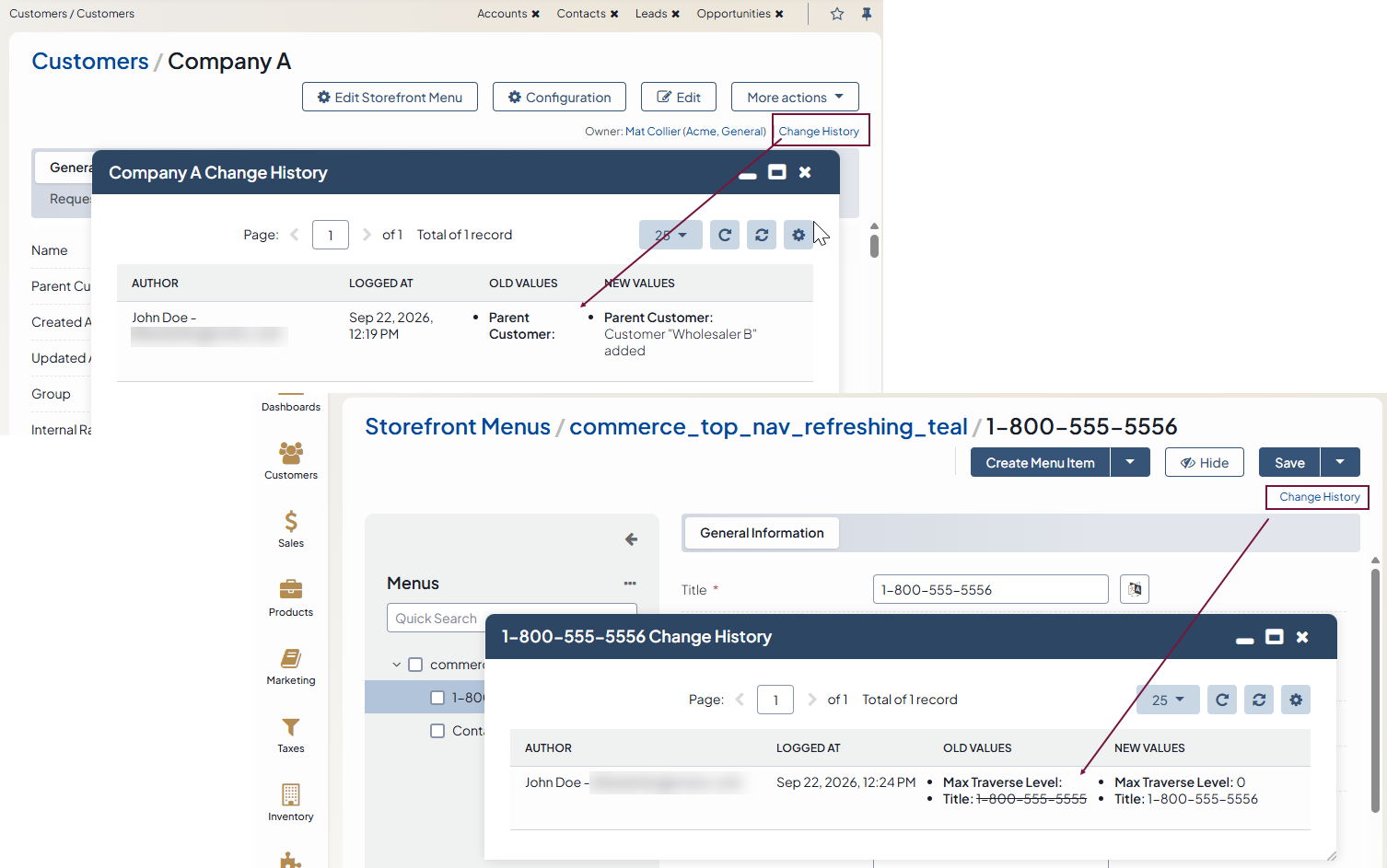

You can review the change history of an auditable entity on its view or edit page. Click Change History in the top-right corner of the page to open it.

The history includes the author and the time of the change, and the difference between the previous and the new values.

Changed history of the customer entity

Make sure that both the entity and entity fields are marked as Auditable if you want to track the history of its changes.

View Configuration Settings Changes

Data Audit also tracks changes to configuration settings, not only to entities. This tracking works automatically for every setting, so you do not need to mark individual settings as auditable.

The application can store configuration settings at up to six levels: system (global), organization, website, customer group, customer, and user (My Configuration).

Whenever someone changes a configuration setting at any of these levels, the application creates an audit record for that change. You can find this record on the same System > Data Audit page that lists entity changes.

Configuration settings changes audit grid under System > Data Audit

If a single save changes several settings at once, the application creates one audit record for all of them. When the record mixes different kinds of change, for example one setting was created and another was updated, the application labels the entire record as Update.

Configuration settings changes audit grid with multiple settings changes in one record

Use the Data filter to find a match in the name of the changed setting or its location, for example User Login or always_require.

Important

If a setting stores sensitive information, such as a password or a client secret, the application does not display its value in the audit record. Instead, the record shows ***. You can still see who changed the setting and when they changed it.

Audit grid displaying changes to settings with sensitive information via ***

Create a Data Audit Report

You can create reports based on the changes that have taken place in auditable entities.

As an illustration, we are going to create a report of products that have been discontinued this year, i.e., the items that have Inventory Status changed to Discontinued.

Hint

First, make sure that the Inventory Status entity field is auditable.

  1. Navigate to Reports & Segments > Manage Custom Reports.

  2. Click Create Report

  3. Provide the following key details in the General section:

    • Name — Give the report a name.

    • Entity — Select Product for entity type.

    • Report Type — Select Table.

  4. In Filters, drag and drop the Data Audit field to the area on the right.

  5. Set the following conditions:

    • Product > Inventory Status

    • Has been changed to > is any of > Discontinued

    • Interval equals > today

  6. Add the following columns to the table:

    • SKU

    • Inventory Status

    • Created At

    • Update At

  7. Click Save and Close.

Audit of Login Attempts

Note

This is a Platform Enterprise feature.

To simplify investigation of any security-related incidents, the application keeps track of all back-office login attempts and the following related security events:

  • Successful login

  • Unsuccessful login

  • Account is locked

  • Autodeactivation email has been sent

  • Reset password email has been sent

The log is stored in the security log channel.

Record login details in a database table

In addition to the type of the security event, the following details are recorded in the table:

  • user ID

  • username

  • email

  • full name

  • user status (enabled or disabled)

  • last login date and time

  • user creation date and time

  • IP address

Login attempts can be accessed from the back-office UI. See Login Attempts UI for more information.
